SHAP Force Plot

Source: R/sv_force.R

Creates a force plot of SHAP values of one observation. If multiple observations are selected, their SHAP values and predictions are averaged.

sv_force(object, ...)

# Default S3 method
sv_force(object, ...)

# S3 method for class 'shapviz'
sv_force(
  object,
  row_id = 1L,
  max_display = 6L,
  fill_colors = c("#f7d13d", "#a52c60"),
  format_shap = getOption("shapviz.format_shap"),
  format_feat = getOption("shapviz.format_feat"),
  contrast = TRUE,
  bar_label_size = 3.2,
  show_annotation = TRUE,
  annotation_size = 3.2,
  ...
)

# S3 method for class 'mshapviz'
sv_force(
  object,
  row_id = 1L,
  max_display = 6L,
  fill_colors = c("#f7d13d", "#a52c60"),
  format_shap = getOption("shapviz.format_shap"),
  format_feat = getOption("shapviz.format_feat"),
  contrast = TRUE,
  bar_label_size = 3.2,
  show_annotation = TRUE,
  annotation_size = 3.2,
  ...
)

Arguments

object

An object of class "(m)shapviz".

...

Arguments passed to ggfittext::geom_fit_text(). For example, size = 9 will use fixed text size in the bars and size = 0 will altogether suppress adding text to the bars.

row_id

Subset of observations to plot, typically a single row number. If more than one row is selected, SHAP values are averaged, and feature values are shown only when they are unique.

max_display

Maximum number of features (with largest absolute SHAP values) should be plotted? If there are more features, they will be collapsed to one feature. Set to Inf to show all features.

fill_colors

A vector of exactly two fill colors: the first for positive SHAP values, the other for negative ones.

format_shap

Function used to format SHAP values. The default uses the global option shapviz.format_shap, which equals to function(z) prettyNum(z, digits = 3, scientific = FALSE) by default.

format_feat

Function used to format numeric feature values. The default uses the global option shapviz.format_feat, which equals to function(z) prettyNum(z, digits = 3, scientific = FALSE) by default.

contrast

Logical flag that detemines whether to use white text in dark arrows. Default is TRUE.

bar_label_size

Size of text used to describe bars (via ggrepel::geom_text_repel()).

show_annotation

Should "f(x)" and "E(f(x))" be plotted? Default is TRUE.

annotation_size

Size of the annotation text (f(x)=... and E(f(x))=...).

Value

An object of class "ggplot" (or "patchwork") representing a force plot.

Details

f(x) denotes the prediction on the SHAP scale, while E(f(x)) refers to the baseline SHAP value.

Methods (by class)

  • sv_force(default): Default method.

  • sv_force(shapviz): SHAP force plot for object of class "shapviz".

  • sv_force(mshapviz): SHAP force plot for object of class "mshapviz".

See also

sv_waterfall()

Examples

dtrain <- xgboost::xgb.DMatrix(
  data.matrix(iris[, -1]), label = iris[, 1], nthread = 1
)
fit <- xgboost::xgb.train(data = dtrain, nrounds = 20, nthread = 1)
x <- shapviz(fit, X_pred = dtrain, X = iris[, -1])

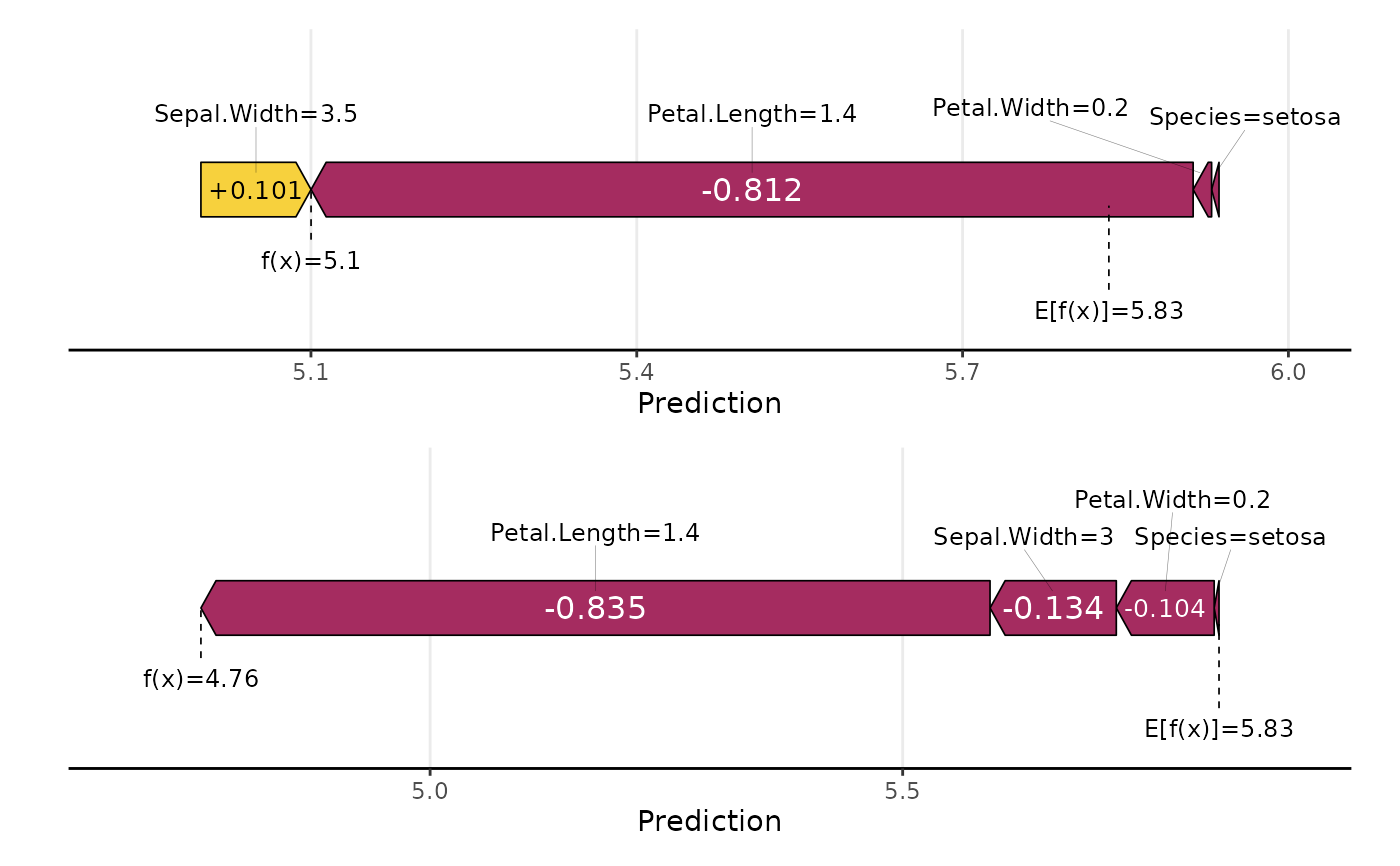

sv_force(x)

sv_force(x, row_id = 65, max_display = 3, size = 9, fill_colors = 4:5)


# Aggregate over all observations with Petal.Length == 1.4
sv_force(x, row_id = x$X$Petal.Length == 1.4)
#> Aggregating SHAP values over 13 observations
